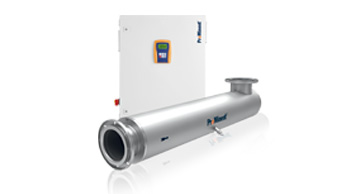

UV system DULCODES LP F&B

Flow up to 168 m3/h

UV system with hygienic design of radiation chamber. For reliable disinfection and constant quality in your production process.

Product description

Chemical-free disinfection of production water for the food and beverage industry

Pioneering water treatment – highly efficient UV system DULCODES LP F&B with VARIO-Flux lamp and dynamic lamp heating. The reduced number of lamps and minimal use of energy deliver maximum efficiency and minimal operating costs.

Optimised flow in the radiation chamber results in an even dose of radiation across the entire volumetric flow. At the same time the pressure loss is kept to a minimum.

The DULCODES LP F&B is the first UV system to be quickly and precisely controllable over a wide temperature range. It automatically adapts to changing flows or changes in water quality.

Features and Benefits

  • Efficient, safe and chemical-free disinfection of product water in the food and beverage industry
  • Hygienic design without gaps and dead space, tri-clamp connectors, surface roughness Ra <0.8 internal and external, FDA-compliant materials
  • Adapted disinfection with varying flows and water temperatures
  • Increased flow output with a minimum number of lamps and minimum pressure loss
  • Reduced operating costs due to the long-life VARIO-Flux high-output lamps with low energy consumption and high UV yield
  • System monitoring in real time from any location via the DULCONNEX Platform: Improved process reliability. Reliability and transparency thanks to real-time monitoring, individual alarms and automated reports.
  • User-friendly and intuitive control for displaying operating statuses and adjusting operating parameters
  • Excellent flexibility thanks to vertical or horizontal installation and free choice of the flange position
  • End-to-end documentation: all relevant operating data and events are saved on the SD card and can be simply and conveniently visualised with an analysis programme

Field of application

The following list is a general representation of basically suitable applications for this product. Please contact your personal representative to discuss the use of the product in your individual application.

  • Food and beverage production

    Disinfection of Potable Water

    Germ-free potable water thanks to disinfection

    As an essential nutrient, water must satisfy very strict quality controls. ProMinent offers sophisticated disinfection technology that reliably removes viruses, bacteria and microorganisms.
    more

    Utility Water Treatment

    It makes economic sense to reuse process water.

    Why would you discharge water just because you've used it once? If this water is treated properly, it can be reused with ease, cutting costs in no time.
    more

    Fish processing, fish and shrimp farming

    Successful farming and hygienic processing

    More and more people are enjoying delicacies from our seas. Fish farms and also the fish processing industry therefore face the huge challenge of producing goods quickly and hygienically. Disinfected water is essential to both industries.
    more

    Production of whey and cheese

    Perfect water for the entire production process

    To guarantee an end product fit for purpose, ProMinent ensures optimum water quality at every stage of production, thereby reliably complying with statutory hygiene standards.
    more

    Technical Details

    • Comprehensively certified to internationally recognised DIN-DVGW / ÖNORM / SVGW / ACS / EPA-UVDGM standards.
    • The unique combination of electronic ballast technology and the VARIO-Flux lamps enables the system to be quickly and precisely dimmed over a broad capacity range of up to 50%.
    • Stainless steel control cabinet with IP 66 degree of protection.
    • Suitable for integration into CIP (cleaning in place) circuits.
    • High-grade stainless steel 1.4404/316L reactor hydraulically optimised by means of computer simulation.
    • High-output amalgam lamps "VARIO-Flux" with dynamic lamp heating.
    • Guaranteed lamp service life of 14,000 operating hours (pro rata).
    • Electronic ballasts for gentle lamp ignition, operation and individual monitoring as well as control.
    • DIN DVGW/ÖVGW UVC sensor 160° opening angle, highly selective and age-stable, integrated in the measuring window.
    • Various options for simple integration of the system in higher-level control systems thanks to many analogue and digital interfaces and connectors.
    • Data logger: all relevant operating data and events are saved on the SD card and can be simply and conveniently visualised with an analysis programme.

    Technical Data

    Type

    Max. flow rate*

    Lamp power

    Connected load

    Radiation chamber length

    Free space needed for maintenance

    Diameter

    Connector width

    gph | m3/h

    W

    W

    inch

    inch

    inch

    Tri clamp

    * 98 %/cm transmission; flows certified to DIN-DVGW 19294 / ÖNORM / SVGW / ACS

    1x350 LP

    12,682 | 48

    370

    430

    64.57

    57.68

    6.61

    DN 100

    2x350 LP

    28,798 | 109

    2x370

    835

    64.57

    57.68

    10.08

    DN 150

    3x350 LP

    44,386 | 168

    3x370

    1,240

    74.21

    61.61

    12.76

    DN 200

    Lamp type

    Low-pressure lamp VARIO Flux

    Control type

    Comfort controller

    Permissible operating pressure

    145 psi

    Min. ambient temperature

    41 °F (5 °C)

    Max. ambient temperature

    104 °F (40 °C)

    Permissible water temperature

    36…158 °F (2…70 °C)

    Enclosure rating

    IP 66
