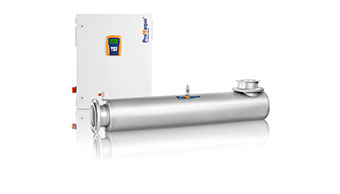

UV System DULCODES LP

Flow up to 523 m³/h

The unique UV systems DULCODES LP are synonymous with pioneering water treatment – efficient and free of chemicals.

Product description

Precise lamp dimming in seconds – even with varying flows and water temperatures

Our patented VARIO-Flux high-output lamps with dynamic lamp heating are used in the DULCODES LP. Thanks to the unique combination of electronic ballast technology and the VARIO-Flux lamps, the lamps can be quickly and precisely dimmed over a broad capacity range of up to 50% of the nominal electrical power. This ensures automatic adjustment to varying flows and water temperatures at all times.

Efficiency even increases in dimmed mode, which has a particularly positive effect when the actual flow is below the system’s maximum possible flow.

The flow in the DULCODES LP has been optimised in a reactor based on intensive computer simulation. At the same time the pressure loss is kept to a minimum. The resulting uniform radiation dose of a partial volumetric flow (without over-metering or under-metering) leads to minimal use of energy, a minimum number of lamps and significantly reduced life cycle costs.

Features and Benefits

  • UV system DULCODES LP for a broad field of application for efficient, safe and chemical-free water disinfection
  • Unique dynamic lamp heating adjusts the lamp output in seconds and provides for reliable disinfection even with varying flows and water temperatures
  • Homogeneous UV dose thanks to optimised flow behaviour in the reactor guarantees maximum flow output with a minimum number of lamps and minimum pressure loss
  • Reduced life cycle costs due to the long service life of VARIO-Flux high-output lamps with low energy consumption and high UV yield
  • Excellent flexibility thanks to vertical or horizontal installation and free choice of the flange position
  • System monitoring in real time from any location via the DULCONNEX Platform: Improved process reliability. Reliability and transparency thanks to real-time monitoring, individual alarms and automated reports.
  • User-friendly and intuitive control for displaying operating statuses and adjusting operating parameters
  • Control cabinet with efficient recirculation cooling ensures the long life of electronic components and protects against corrosion in aggressive ambient conditions
  • Data logger: all relevant operating data and events are saved on the SD card and can be simply and conveniently visualised with an analysis programme
  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    UV system DULCODES LP kills germs and costs

Field of application

The following list is a general representation of basically suitable applications for this product. Please contact your personal representative to discuss the use of the product in your individual application.

  • Potable water treatment
  • Food and beverage production
  • Swimming pool water

    Technical Details

    • High-grade stainless steel 1.4404/316L reactor hydraulically optimised by means of computer simulation
    • High-output amalgam lamp "VARIO-Flux" with dynamic lamp heating
    • Guaranteed lamp service life of 14,000 operating hours (pro rata)
    • Electronic ballasts for gentle lamp ignition, operation and individual monitoring as well as control
    • Long-term stable UVC sensor for continuous monitoring of the system
    • Efficient and chemical-free cleaning of the cover tubes with manual or automatic wiper system, available for selected system sizes as options
    • Continuous monitoring of the reactor temperature by temperature sensor Pt 1000
    • Single-lamp system: equipped with either a Compact controller or Comfort controller
    • Various options for simple integration of the system in higher-level control systems via numerous analogue and digital interfaces
    • Data logger: all relevant operating data and events are saved on the SD card and can be simply and conveniently visualised with an analysis programme

    Technical Data

    Type

    Max. flow rate

    Lamp power

    Connected load

    Radiation chamber length

    Free space needed for maintenance

    Diameter

    Connector width*

    gph | m3/h

    W

    W

    inch

    inch

    inch

    DIN / ANSI / TC

    * TC = Tri Clamp

    1x80 LP

    2,325 | 8.8

    81

    110

    34.33

    38.31

    5.51

    RP 2” / RP 2” / -

    1x230 LP

    9,247 | 35

    260

    310

    45.31

    41.89

    5.51

    DN 80 / 3" / DN 80

    1x350 LP

    14,003 | 53

    370

    430

    64.57

    57.68

    6.61

    DN 100 / 4" / DN 100

    2x350 LP

    32,497 | 123

    2x370

    835

    64.57

    57.68

    10.08

    DN 150 / 6" / DN 150

    3x230 LP

    40,951 | 155

    3x260

    825

    46.65

    45.51

    12.76

    DN 150 / 6" / -

    3x350 LP

    61,294 | 232

    3x370

    1,240

    74.21

    61.61

    12.76

    DN 200 / 8" / DN 200

    4x350 LP

    83,751 | 317

    4x370

    1,645

    74.21

    61.61

    14.02

    DN 200 / 8" / -

    6x350 LP

    138,177 | 523

    6x370

    2,455

    74.21

    61.61

    15.98

    DN 250 / 10" / -

    Lamp type

    Low-pressure lamp VARIO Flux

    Control type

    Comfort controller, optionally compact controller

    Permissible operating pressure

    145 psi or 232 psi

    Ambient temperature

    41 … 104 °F (5 … 40 °C) with comfort control, 41 … 95 °F (5 … 35 °C) with compact control

    Permissible water temperature

    36…158 °F (2…70 °C)

    Enclosure rating

    IP 66
