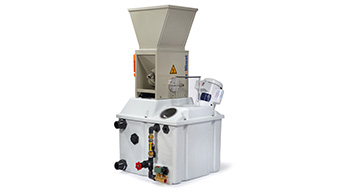

ProMdry Dry Chemical Feed System

Capacity of 0.95-2.87 cubic ft/hr

Compact Dry Chemical Feed Package

Product description

ProMdry Dry Chemical Feed System

The ProMdry system is designed to mix dry chemicals into solution prior to adding to the water treatment process. The volumetric feeder dispenses dry chemical into the mix tank while the flow switch is monitoring water entering the mix tank. The dry chemical and the water are introduced directly into the prop style tank mixer, where they are mixed into solution. The solution is then drawn from the opposite side of the tank to the process.

Features and Benefits

  • Rugged PE volumetric feeder with internal arch breaker
  • Can be configured as a batching system or as an inline feed system
  • Corrosion resistant 35-gallon, fiberglass tank
  • Fully automated control
  • Integral level switches, water on/off solenoid, mixer, and variable speed volumetric feeder
  • Remote start input, alarm status output relay

Field of application

The following list is a general representation of basically suitable applications for this product. Please contact your personal representative to discuss the use of the product in your individual application.

  • Municipal water treatment
  • Hydrated lime
  • Soda ash
  • Sodium bicarbonate
  • Activated carbon
  • Compatible with most dry chemicals (Consult factory)

    Technical Details

    Specifications

    • Water Flow: up to 15 USGPM at 30 psid
    • Dry Feed Rate: up to 2.87 cu ft / hour (depends on desired/maximum concentration)
    • Solution Output Flow: up to 15 USGPM
    • Power input: 120 VAC, 1 phase, 60 Hz, 20 Amp

    Materials of Construction

    • Mix Tank and Cover: (Chemical resistant fiberglass reinforced vinyl ester) 35 US Gallons
    • Volumetric Feeder: Polyethylene housing, 304SS feed screw and discharge spout
    • Control Panel: NEMA 4X Polycarbonate
    • Tank Mixer: 316 SS propeller and shaft
    • Various tank sizes and hoppers available in PE and SS

    Technical Data

    • Water Flow: up to 15 USGPM at 30 psid
    • Dry Feed Rate: up to 2.87 cu ft / hour (depends on desired/maximum concentration)
    • Solution Output Flow: up to 15 USGPM
    • Power input: 120 VAC, 1 phase, 60 Hz, 20 Amp
