ProMix - L ™


Unique Polymer Design!

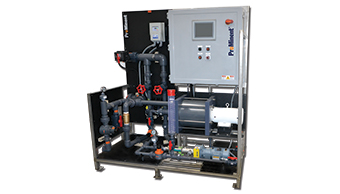

The ProMinent ProMix™ is a complete pre-engineered polymer mixing system with intuitive controls. Designed as an in-line or makedown unit, the ProMix™ is engineered to meet liquid polymer applications utilizing gear or progressing cavity pump technologies The unique
mixing regime delivers a highly activated polymer solution to every application with optimum performance.

Features and benefits

  • LCD display with touchpad control
  • Primary and secondary flow display
  • Local or remote operation
  • 4-20mA input to pace pump
  • Remote start/stop
  • General alarm contacts
  • System browser view
  • Maintains desired concentration based on primary and secondary dilution water flow
  • Ethernet communications and datalogging
  • System senses loss of water flow and neat polymer flow
  • Precise activated polymer solution delivery
  • System alarm and running lights
  • True multi-zone mixing chamber that delivers a tapered energy profile for proper polymer activation
  • Unique injection check valve with easy access for cleaning
  • Gear and progressing cavity pump options
  • Open design for easy maintenance

Applications

  • Emulsion, dispersion or Mannich polymer activation
  • Coagulant or solution polymer feed
  • Water and wastewater treatment
  • Clarification
  • Sludge thickening
  • Sludge dewatering
  • Custom designs to meet any polymer feed application

Specifications

  • Water Inlet: 3” FNPT
  • Polymer Inlet: 2” FNPT for gear pump
  • 1” FNPT for pc pump
  • Solution Outlet 3” FNPT
  • Max. Chamber Pressure 100 PSIG
  • Max. Operating Pressure: 100 PSIG
  • Power Supply 460 VAC, 3 Phase, 60Hz
  • Current Load 20 Amp for (PB) models
  • Drain Connection 1/2" FNPT

Capacity Data

ProMix™-L with Diaphragm Metering Pump
Model Number Primary Dilution

Secondary Dilution

Polymer Pump
gph gph gph
M_0-3000x2-150GB 3000 3000 150
M_0-3000x2-300GB 3000 3000 300
M_0-3000x2-15PB 3000 3000 15
M_0-3000x2-30PB 3000 3000 30
M_0-6000x2-300GB 6000 6000 300
M_0-6000x2-30PB 6000 6000 30
M_0-6000x2-60PB 6000 6000 60

Brochures

Cut Sheet: ProMix-L | Part #: 7750266 | Updated: 9/12/17
