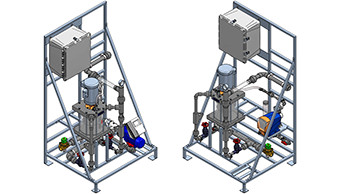

ProMix™- M (In-Line and Batch Controls) Polymer Mixing System

The ProMinent ProMix™ is a pre-engineered polymer mixing system made for the water and wastewater markets. Designed as an in-line unit, the ProMix™ can be customized to meet most liquid polymer applications utilizing tubing or diaphragm pump technologies depending on the application requirement or customer preference. The unique mixing chamber allows for complete makedown of the neat or diluted polymer to guarantee a problem-free injection.

Product description

ProMix™-M (In-Line Controls) Polymer Mixing System

The ProMix™ through its unique 3 chamber dispersion and blending chamber provides staged polymer activation resulting in superiour polymer activation and lowered chemical consumption. The unit is designed to provide neat polymer delivery with a variety of pumps including tube, progressive cavity and diaphragm style depnding on the polymer flow rate and discharge pressure.

Control of the system comes from the standard LCD style touchpad to provide local or remote interface and polymer dose adjustment via 4…20 mA input from the plant. Optional designs include variable water flow control to maintain consistent polymer concentration.

The units provide from the small ProMix™ S 0.22 gph flow to the largest 300 gph ProMix™ L designs.

Features and Benefits

  • Open design for easy maintenance
  • True multi-zone mixing regime for proper polymer activation
  • Unique injection check valve with easy access for cleaning
  • Precise activated polymer solution delivery
  • Twist lock fittings for easy maintenance of polymer and water connections
  • Selectable start/stop and 4-20 mA control from the control panel
  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMinent ProMix Mixer

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMix S, C and M Next Generation

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMix S-M-C with Next Gen A Controls

Field of application

The following list is a general representation of basically suitable applications for this product. Please contact your personal representative to discuss the use of the product in your individual application.

  • Emulsion, dispersion or mannich polymer activation
  • Coagulant or solution polymer feed
  • Water and wastewater treatment
  • Clarification
  • Sludge dewatering

    Technical Details

    • Water Inlet: 1-1/2” FNPT
    • Polymer Inlet: 1/2” or 1” FNPT
    • Product Outlet: 1-1/2” FNPT
    • Drain Connection: 1/4”
    • Max. Operating Pressure: 100 psig
    • Power Supply: DA Models 120 VAC, 1 ph, 60 Hz, 20 Amp
    • Power Supply: PA Models 220 VAC, 1 ph, 60 Hz, 20 Amp
    • Motor: 1.5 hp, 115/230 VAC, 1 ph, TEFC, 1725 rpm
    • Dimensions: 40” x 34” x 72” (L x W x H)

    Capacity Data

    ProMix™-M with Diaphragm Metering Pump

    Model Number

    Primary Dilution

    Post Dilution

    Neat Polymer Pump

    Max. Pump Pressure

    Order no.

    gph

    gph

    gph

    psi

    300x2-2.3DB

    300

    300

    2.3

    100

    1048382

    600x2-3.8DB

    600

    600

    3.8

    100

    1048383

    1500x2-6.2DB

    1,500

    1,500

    6.2

    100

    1048384

    1500x2-10.3DB

    1,500

    1,500

    10.3

    58

    1048385

    ProMix™-M with Progressive Cavity Pump

    Model Number

    Primary Dilution

    Post Dilution

    Neat Polymer Pump

    Max. Pump Pressure

    Order no.

    gph

    gph

    gph

    psi

    1500x2-5.0PB

    1,500

    1,500

    5

    100

    1048386

    1500x2-10.0PB

    1,500

    1,500

    10

    100

    1048387

    1500x2-24.0PB

    1,500

    1,500

    24

    100

    1048388
