ProMix™- S Polymer Mixing System

The ProMinent ProMix™ is a pre-engineered polymer mixing system made for the water and wastewater markets. Designed as an in-line unit, the ProMix™ can be customized to meet most liquid polymer applications utilizing tubing or diaphragm pump technologies depending on the application requirement or customer preference. The unique mixing chamber allows for complete makedown of the neat or diluted polymer to guarantee a problem-free injection.

Product description

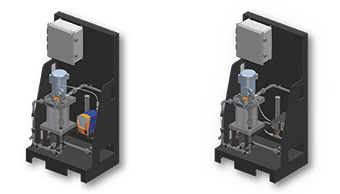

ProMix™-S Polymer Mixing System

The ProMix™ through its unique 3 chamber dispersion and blending chamber provides staged polymer activation resulting in superior polymer activation and lowered chemical consumption. The unit is designed to provide neat polymer delivery with a variety of pumps including tube, progressive cavity and diaphragm style depending on the polymer flow rate and discharge pressure.

Control of the system comes from the standard LCD style touchpad to provide local or remote interface and polymer dose adjustment via 4…20 mA input from the plant. Optional designs include variable water flow control to maintain consistent polymer concentration.

The units provide from the small ProMix™ S 0.22 gph flow to the largest 300 gph ProMix™ L designs.

Features and Benefits

  • New pump shelf design for peristaltic pump models, allows easy access to the hose & connections
  • Open design for easy maintenance
  • True multi-zone mixing regime for proper polymer activation
  • Remote start/stop
  • 4-20 mA input to pace pump
  • General alarm contacts
  • Selectable start/stop and 4-20 mA control from the control panel
  • Adjustable neat polymer pump for flooded suction or suction lift applications
  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMinent ProMix Mixer

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMix S, C and M Next Generation

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMix S-M-C with Next Gen A Controls

Field of application

The following list is a general representation of basically suitable applications for this product. Please contact your personal representative to discuss the use of the product in your individual application.

  • Emulsion, dispersion or Mannich polymer activation
  • Coagulant or solution polymer feed
  • Water and wastewater treatment
  • Clarification
  • Sludge dewatering

    ProMixTM-S - Capacity Data

    ProMix™-S with Peristaltic Tube Pump

    Model Number

    Primary Dilution

    Post Dilution

    Neat Polymer Pump

    Max. Pump Pressure

    Order no.

    gph

    gph

    gph

    psi

    60x2-0.60TA

    60

    60

    0.72

    72

    1048347

    120x2-1.20TA

    120

    120

    1.44

    72

    1048349

    300x2-3.00TA

    300

    300

    3.60

    72

    1048352

    ProMix™-S with Diaphragm Metering Pump

    Model Number

    Primary Dilution

    Post Dilution

    Neat Polymer Pump

    Max. Pump Pressure

    Order no.

    gph

    gph

    gph

    psi

    60x2-0.60DA

    60

    60

    0.72

    100

    1048354

    120x2-1.20DA

    120

    120

    1.44

    100

    1048356

    300x2-3.00DA

    300

    300

    3.60

    100

    1048358

    Specifications

    • Water Inlet: 3/4” FNPT
    • Polymer Inlet: 1/2” FNPT
    • Product Outlet: 3/4” FNPT
    • Drain Connection: 1/4”
    • Max. Chamber Pressure rating: 150 PSIG
    • Max. Operating Pressure: 100 PSIG
    • Power Supply: 120 VAC, 1 Phase, 60Hz
    • Current Load: 15 Amp
    • Motor: 1/2 hp, 115/230 VAC, 1 Phase, TEFC, 1725 rpm
    • Dimensions: 24” x 34” x 66” (L x W x H)
    • Neat Polymer Pump: Peristaltic or Diaphragm design
