Evolution Series

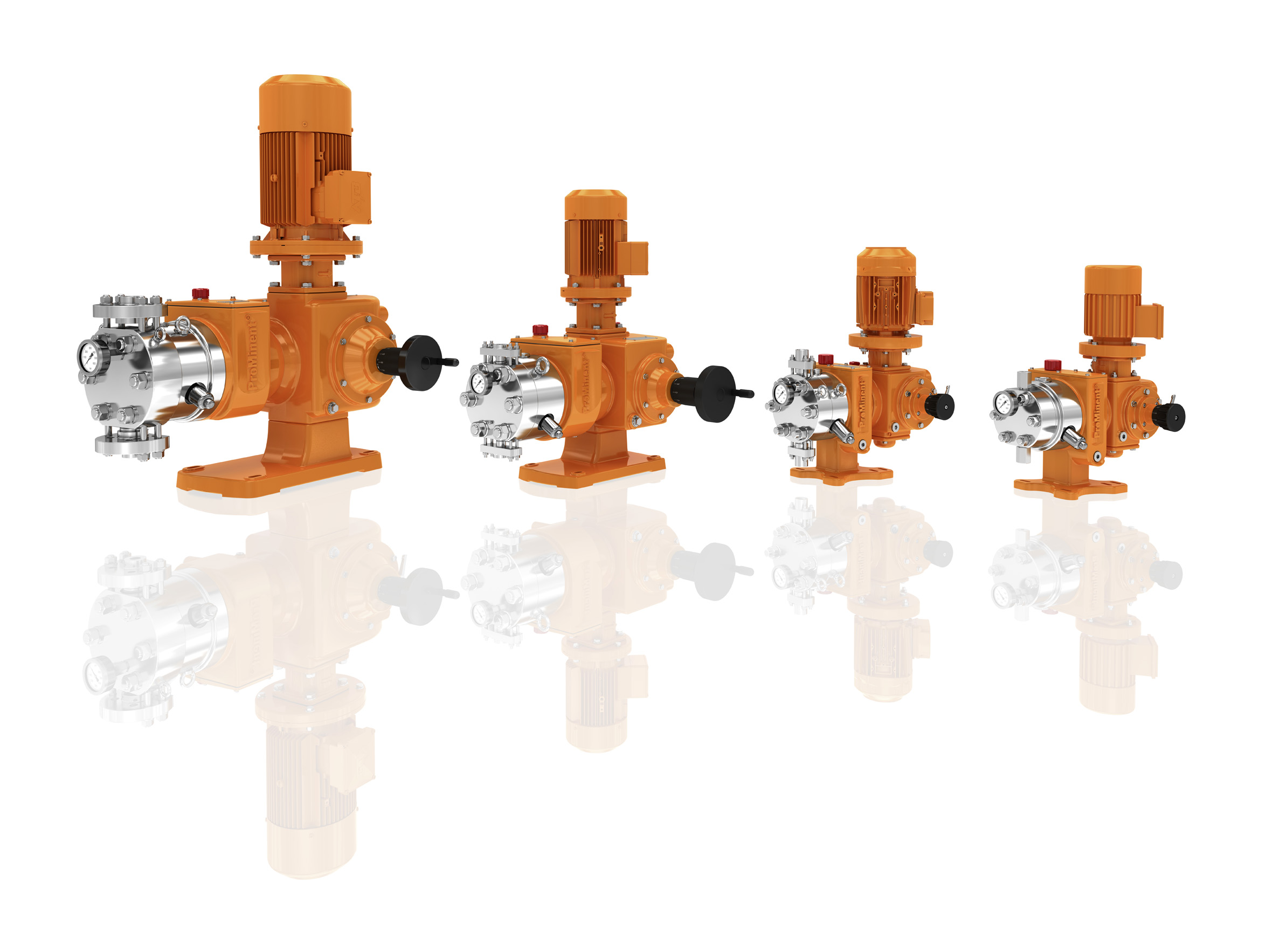

Flow rates from 0.79 to 1,955 gph per head. Operating pressures up to 5,800 psi

The ORLITA Evolution meets the most exacting safety requirements as an extremely robust hydraulic diaphragm metering pump. It is characterised by its PTFE multi-layer diaphragm with integral diaphragm rupture warning / signalling and unique diaphragm position control.

Product description

Maximum process reliability and flexibility.

The ProMinent Evolution Series pumps are API 675, 3rd Edition compliant and meet the most exacting safety requirements as an extremely robust hydraulic diaphragm metering pump design.

Features and Benefits

  • Flow rates from 0.48 to 1932.48 gph per head
  • Operating Pressures up to 5802 psig
  • Variable eccentric drive for accurate, robust operation and a smaller footprint
  • Four frame sizes to cover a broad range of applications
  • PTFE multi-layer diaphragm with integral diaphragm rupture warning system is standard on all pumps
  • Liquid End Materials in 316ss and Alloy 20, additional materials available on demand
  • Exclusive Diaphragm Position Control protects the pump against operating faults (e.g., no damage in the event of a blockage on either the suction or discharge side). This advance in pump design technology means a more reliable metering pump in every application
  • Metering reproducibility is better than ±1 % within the 10 - 100 % stroke length range under defined conditions and with correct installation
  • Continuous air bleeding of the hydraulic oil chamber ensures reliable operation
  • Integral adjustable internal hydraulic pressure relief valve with features that allow for oil cooling during extended periods of process upset conditions
  • Excellent flexibility
  • The Evolution's modular compact construction allows for a wide range of applications
  • Up to five (5) metering units of identical or varying pump capacities can be multiplexed for the greatest application adaptability
  • A rotatable drive housing allows for installation of motor in a vertical or horizontal position to better meet specific footprint requirements
  • Custom designs are possible to meet a variety of application demands
  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMinent Evolution Hydraulic Metering Pump - Design and Technology

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMinent Evolution Hydraulic Metering Pump - Flexible Usage

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMinent Evolution Hydraulic Metering Pump - Safe Operation

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    ProMinent Evolution Hydraulic Metering Pump - The New Generation of Pumps

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    Trailer: The new ORLITA Evolution - Takes a forward leap

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    Process Metering Pump ORLITA Evolution: Maximum process reliability

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    Process Metering Pump ORLITA Evolution: Excellent flexibility

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    Process Metering Pump ORLITA Evolution: Design and Technology

  • The use of cookies is required to play this video. Here you can adjust your cookie selection to watch this video.

    Hydraulic Fracturing

Field of application

The following list is a general representation of basically suitable applications for this product. Please contact your personal representative to discuss the use of the product in your individual application.

  • Oil and gas industry
  • Metering of reactants and catalysts in the chemical industry
  • Volume-proportional metering of chemicals/additives in the treatment of boiler feed water
  • Level-dependent metering of auxiliary agents in industrial production engineering, for instance hot wax metering in the production of adhesive strips

    Technical Details

    Available Options:

    • Electronic stroke control (4-20mA, BUS Interfaces, etc.)
    • Jacketed liquid ends
    • Diaphragm leak detection: Guage only (Standard), Pressure Switches, Pressure Transmitters, Suitable for Classified Areas
    • Check valve configurations: Ball (single and double), Cone type, Plate type
    • Custom painting per specification
    • Custom wetted materials (Hastelloy, Monel, Zirconium, etc.)
    • Flanged and threaded connections to meet most ANSI or DIN/ISO requirements
    • Pump selections for high or low temperature applications

    ORLITA Evolution EF1a

    Technical data for Evolution EF1a single head pump 50 Hz SST

    Plunger Ø

    Max. pressure

    Max. pump capacity in gph | l/h at strokes/min

    Theor. stroke volume

    Suction lift

    Connection on suction/discharge side

    Shipping weight

    71

    97

    116

    145

    165

    181

    201

    inch

    psi

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    ml/stroke

    ft | m WC

    inches

    lb | kg

    0.31

    5,802

    0.4 | 1.5

    0.53 | 2.0

    0.63 | 2.4

    0.79 | 3.0

    0.9 | 3.4

    1 | 3.8

    1.11 | 4.2

    0.80

    10 | 3.0

    1/16"

    176.3 | 80

    0.39

    4,888

    0.87 | 3.3

    1.19 | 4.5

    1.4 | 5.3

    1.77 | 6.7

    2.01 | 7.6

    2.19 | 8.3

    2.43 | 9.2

    1.26

    10 | 3.0

    1/16"

    176.3 | 80

    0.43

    4,032

    1.22 | 4.6

    1.66 | 6.3

    1.98 | 7.5

    2.48 | 9.4

    2.83 | 10.7

    3.09 | 11.7

    3.43 | 13.0

    1.52

    10 | 3.0

    1/8"

    176.3 | 80

    0.47

    3,394

    1.56 | 5.9

    2.14 | 8.1

    2.56 | 9.7

    3.2 | 12.1

    3.65 | 13.8

    3.99 | 15.1

    4.44 | 16.8

    1.81

    10 | 3.0

    1/8"

    176.3 | 80

    0.51

    2,901

    1.98 | 7.5

    2.72 | 10.3

    3.25 | 12.3

    4.04 | 15.3

    4.62 | 17.5

    5.05 | 19.1

    5.63 | 21.3

    2.12

    10 | 3.0

    1/8"

    176.3 | 80

    0.55

    2,495

    1.72 | 6.5

    2.35 | 8.9

    2.8 | 10.6

    3.51 | 13.3

    3.99 | 15.1

    4.39 | 16.6

    4.86 | 18.4

    2.46

    10 | 3.0

    1/8"

    176.3 | 80

    0.59

    2,176

    2.14 | 8.1

    2.91 | 11.0

    3.49 | 13.2

    4.36 | 16.5

    4.97 | 18.8

    5.44 | 20.6

    6.05 | 22.9

    2.83

    10 | 3.0

    1/8"

    176.3 | 80

    0.63

    1,915

    2.62 | 9.9

    3.57 | 13.5

    4.25 | 16.1

    5.34 | 20.2

    6.05 | 22.9

    6.66 | 25.2

    7.37 | 27.9

    3.22

    10 | 3.0

    1/8"

    176.3 | 80

    0.67

    1,697

    3.14 | 11.9

    4.31 | 16.3

    5.15 | 19.5

    6.42 | 24.3

    7.32 | 27.7

    8.03 | 30.4

    8.9 | 33.7

    3.63

    10 | 3.0

    1/8"

    176.3 | 80

    0.71

    1,508

    3.75 | 14.2

    5.13 | 19.4

    6.13 | 23.2

    7.69 | 29.1

    8.75 | 33.1

    9.59 | 36.3

    10.65 | 40.3

    4.07

    10 | 3.0

    1/8"

    176.3 | 80

    0.75

    1,349

    4.44 | 16.8

    6.08 | 23.0

    7.27 | 27.5

    9.06 | 34.3

    10.33 | 39.1

    11.33 | 42.9

    12.58 | 47.6

    4.54

    10 | 3.0

    1/8"

    176.3 | 80

    0.79

    1,218

    4.7 | 17.8

    6.42 | 24.3

    7.66 | 29.0

    9.59 | 36.3

    10.91 | 41.3

    11.97 | 45.3

    13.29 | 50.3

    5.03

    10 | 3.0

    1/4"

    176.3 | 80

    0.83

    1,102

    5.31 | 20.1

    7.24 | 27.4

    8.67 | 32.8

    10.83 | 41.0

    12.31 | 46.6

    13.53 | 51.2

    15.01 | 56.8

    5.54

    10 | 3.0

    1/4"

    176.3 | 80

    0.87

    1,015

    5.89 | 22.3

    8.03 | 30.4

    9.62 | 36.4

    12.02 | 45.5

    13.69 | 51.8

    15.01 | 56.8

    16.67 | 63.1

    6.08

    10 | 3.0

    1/4"

    176.3 | 80

    0.91

    928

    6.5 | 24.6

    8.88 | 33.6

    10.65 | 40.3

    13.29 | 50.3

    15.14 | 57.3

    16.59 | 62.8

    18.44 | 69.8

    6.65

    10 | 3.0

    1/4"

    176.3 | 80

    0.98

    783

    7.95 | 30.1

    10.86 | 41.1

    13 | 49.2

    16.25 | 61.5

    18.49 | 70.0

    20.29 | 76.8

    22.54 | 85.3

    7.85

    10 | 3.0

    1/4"

    176.3 | 80

    1.14

    580

    11.31 | 42.8

    15.43 | 58.4

    18.47 | 69.9

    23.09 | 87.4

    26.26 | 99.4

    28.8 | 109.0

    31.99 | 121.1

    10.57

    10 | 3.0

    1/4"

    176.3 | 80

    1.26

    493

    12.89 | 48.8

    17.62 | 66.7

    21.06 | 79.7

    26.31 | 99.6

    29.96 | 113.4

    32.87 | 124.4

    36.49 | 138.1

    12.87

    10 | 3.0

    1/4"

    176.3 | 80

    1.5

    363

    19 | 71.9

    25.94 | 98.2

    31.04 | 117.5

    38.78 | 146.8

    44.15 | 167.1

    48.43 | 183.3

    53.76 | 203.5

    18.15

    10 | 3.0

    1/4"

    176.3 | 80

    1.73

    247

    25.73 | 97.4

    35.17 | 133.1

    42.06 | 159.2

    52.58 | 199.0

    59.81 | 226.4

    65.63 | 248.4

    72.87 | 275.8

    24.33

    10 | 3.0

    1/2"

    176.3 | 80

    1.85

    203

    29.38 | 111.2

    40.13 | 151.9

    47.98 | 181.6

    59.97 | 227.0

    68.24 | 258.3

    74.87 | 283.4

    83.14 | 314.7

    27.76

    10 | 3.0

    1/2"

    176.3 | 80

    1.97

    203

    33.58 | 127.1

    45.89 | 173.7

    54.87 | 207.7

    68.61 | 259.7

    78.07 | 295.5

    85.63 | 324.1

    95.09 | 359.9

    31.42

    10 | 3.0

    1/2"

    176.3 | 80

    2.13

    174

    39.18 | 148.3

    53.53 | 202.6

    64.02 | 242.3

    80.03 | 302.9

    91.04 | 344.6

    99.89 | 378.1

    110.91 | 419.8

    36.64

    10 | 3.0

    1/2"

    176.3 | 80

    2.28

    145

    45.2 | 171.1

    61.74 | 233.7

    73.84 | 279.5

    92.31 | 349.4

    105.05 | 397.6

    115.22 | 436.1

    127.95 | 484.3

    42.27

    10 | 3.0

    1/2"

    176.3 | 80

    2.36

    145

    48.38 | 183.1

    66.08 | 250.1

    79.02 | 299.1

    98.78 | 373.9

    112.42 | 425.5

    123.3 | 466.7

    136.93 | 518.3

    45.24

    10 | 3.0

    1/2"

    176.3 | 80

    Valve type: Double ball valve up to DN 10, plate valve as of DN 16

    Version PVC, PVDF max. 16 bar (slight deviation in pump capacity possible)

    Technical data for Evolution EF1a single-head pump 60 Hz

    Plunger Ø

    Max. pressure

    Max. pump capacity in gph | l/h at strokes/min

    Theor. stroke volume

    Suction lift

    Connection on suction/discharge side

    Shipping weight

    88

    117

    140

    175

    199

    inch

    psi

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    ml/stroke

    ft | m WC

    inches

    lb | kg

    0.31

    5,802

    0.48 | 1.8

    0.63 | 2.4

    0.77 | 2.9

    0.95 | 3.6

    1.08 | 4.1

    0.80

    10 | 3.0

    1/16"

    176.3 | 80

    0.39

    4,888

    1.08 | 4.1

    1.43 | 5.4

    1.69 | 6.4

    2.14 | 8.1

    2.43 | 9.2

    1.26

    10 | 3.0

    1/16"

    176.3 | 80

    0.43

    4,032

    1.51 | 5.7

    2.01 | 7.6

    2.4 | 9.1

    2.99 | 11.3

    3.41 | 12.9

    1.52

    10 | 3.0

    1/8"

    176.3 | 80

    0.47

    3,394

    1.96 | 7.4

    2.59 | 9.8

    3.09 | 11.7

    3.86 | 14.6

    4.39 | 16.6

    1.81

    10 | 3.0

    1/8"

    176.3 | 80

    0.51

    2,901

    2.46 | 9.3

    3.28 | 12.4

    3.91 | 14.8

    4.89 | 18.5

    5.57 | 21.1

    2.12

    10 | 3.0

    1/8"

    176.3 | 80

    0.55

    2,495

    2.14 | 8.1

    2.83 | 10.7

    3.38 | 12.8

    4.23 | 16.0

    4.81 | 18.2

    2.46

    10 | 3.0

    1/8"

    176.3 | 80

    0.59

    2,176

    2.64 | 10.0

    3.51 | 13.3

    4.2 | 15.9

    5.26 | 19.9

    5.97 | 22.6

    2.83

    10 | 3.0

    1/8"

    176.3 | 80

    0.63

    1,915

    3.22 | 12.2

    4.31 | 16.3

    5.15 | 19.5

    6.42 | 24.3

    7.32 | 27.7

    3.22

    10 | 3.0

    1/8"

    176.3 | 80

    0.67

    1,697

    3.91 | 14.8

    5.18 | 19.6

    6.21 | 23.5

    7.77 | 29.4

    8.82 | 33.4

    3.63

    10 | 3.0

    1/8"

    176.3 | 80

    0.71

    1,508

    4.65 | 17.6

    6.18 | 23.4

    7.4 | 28.0

    9.27 | 35.1

    10.54 | 39.9

    4.07

    10 | 3.0

    1/8"

    176.3 | 80

    0.75

    1,349

    5.5 | 20.8

    7.32 | 27.7

    8.77 | 33.2

    10.94 | 41.4

    12.44 | 47.1

    4.54

    10 | 3.0

    1/8"

    176.3 | 80

    0.79

    1,218

    5.81 | 22.0

    7.74 | 29.3

    9.27 | 35.1

    11.57 | 43.8

    13.16 | 49.8

    5.03

    10 | 3.0

    1/4"

    176.3 | 80

    0.83

    1,102

    6.58 | 24.9

    8.75 | 33.1

    10.46 | 39.6

    13.08 | 49.5

    14.85 | 56.2

    5.54

    10 | 3.0

    1/4"

    176.3 | 80

    0.87

    1,015

    7.29 | 27.6

    9.7 | 36.7

    11.6 | 43.9

    14.5 | 54.9

    16.51 | 62.5

    6.08

    10 | 3.0

    1/4"

    176.3 | 80

    0.91

    928

    8.06 | 30.5

    10.73 | 40.6

    12.84 | 48.6

    16.04 | 60.7

    18.26 | 69.1

    6.65

    10 | 3.0

    1/4"

    176.3 | 80

    0.98

    783

    9.85 | 37.3

    13.1 | 49.6

    15.69 | 59.4

    19.6 | 74.2

    22.3 | 84.4

    7.85

    10 | 3.0

    1/4"

    176.3 | 80

    1.14

    580

    14 | 53.0

    18.63 | 70.5

    22.27 | 84.3

    27.85 | 105.4

    31.68 | 119.9

    10.57

    10 | 3.0

    1/4"

    176.3 | 80

    1.26

    493

    15.98 | 60.5

    21.24 | 80.4

    25.42 | 96.2

    31.78 | 120.3

    36.12 | 136.7

    12.87

    10 | 3.0

    1/4"

    176.3 | 80

    1.5

    363

    23.54 | 89.1

    31.31 | 118.5

    37.46 | 141.8

    46.82 | 177.2

    53.24 | 201.5

    18.15

    10 | 3.0

    1/4"

    176.3 | 80

    1.73

    247

    31.92 | 120.8

    42.4 | 160.5

    50.75 | 192.1

    63.43 | 240.1

    72.15 | 273.1

    24.33

    10 | 3.0

    1/2"

    176.3 | 80

    1.85

    203

    36.41 | 137.8

    48.4 | 183.2

    57.89 | 219.1

    72.39 | 274.0

    82.32 | 311.6

    27.76

    10 | 3.0

    1/2"

    176.3 | 80

    1.97

    203

    41.64 | 157.6

    55.35 | 209.5

    66.23 | 250.7

    82.8 | 313.4

    94.16 | 356.4

    31.42

    10 | 3.0

    1/2"

    176.3 | 80

    2.13

    174

    48.56 | 183.8

    64.57 | 244.4

    77.25 | 292.4

    96.57 | 365.5

    109.83 | 415.7

    36.64

    10 | 3.0

    1/2"

    176.3 | 80

    2.28

    145

    56.01 | 212.0

    74.48 | 281.9

    89.11 | 337.3

    111.41 | 421.7

    126.68 | 479.5

    42.27

    10 | 3.0

    1/2"

    176.3 | 80

    2.36

    145

    59.95 | 226.9

    79.71 | 301.7

    95.38 | 361.0

    119.23 | 451.3

    135.59 | 513.2

    45.24

    10 | 3.0

    1/2"

    176.3 | 80

    Valve type: Double ball valve up to DN 10, plate valve as of DN 16

    Version PVC, PVDF max. 16 bar (slight deviation in pump capacity possible)

    Important note:

    Abridged presentation of our complete product range. Other types on request

    Wetted materials for Evolution EF1a

    Identity code of material

    Dosing head

    Diaphragm/diaphragm mounting screw

    Connection on suction/discharge side

    Seals

    Valve seats

    Valve balls up to DN 10

    Valve plates/valve springs as of DN 16

    S2

    Stainless steel 1.4571/1.4404

    PTFE / stainless steel 1.4462

    Stainless steel 1.4404

    stainless steel 1.4404

    Stainless steel 1.4404

    Al2O3 ceramic

    Stainless steel 1.4462

    P1

    PVDF

    PTFE / Hastelloy C

    PVDF

    PTFE

    PTFE

    Glass

    Ceramic / E-CTFE

    V1

    PVC

    PTFE / Hastelloy C

    PVDF

    PTFE

    PTFE

    Glass

    Ceramic / E-CTFE

    Motor data for EVOLUTION EF1a single-head pump

    Identity code specification Power supply  Remarks
    S3-phase, IP 55230 V/400 V50 Hz0.37 kWWith PTC, speed control range 1:5
    T3-phase, IP 55230 V/400 V
    265 V/460 V
    50 Hz
    60 Hz
    0.37 kW


    L3-phase, IP 55, II 2G Ex de IIC T4 Gb230 V/400 V50 Hz0.37 kWWith PTC, speed control range 1:5
    Q3-phase, IP 55, II 2G Ex de IIC T4265 V/460 V60 Hz0.45 kWWith PTC, speed control range 1:5
    V1-phase, IP 55230 V50 Hz0.75 kWVariable speed stroke control motor with integrated frequency converter

    ORLITA Evolution EF2a

    Technical data for Evolution EF2a single-head pump 50 Hz

    Plunger Ø

    Max. pressure

    Max. pump capacity in gph | l/h at strokes/min

    Theor. stroke volume

    Suction lift

    Connection on suction/discharge side

    Shipping weight

    71

    97

    116

    145

    165

    181

    201

    inch

    psi

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    ml/stroke

    ft | m WC

    inches

    lb | kg

    0.43

    5,802

    1.03 | 3.9

    1.37 | 5.2

    1.64 | 6.2

    2.06 | 7.8

    2.35 | 8.9

    2.67 | 10.1

    2.85 | 10.8

    1.52

    10 | 3.0

    1/8"

    209.4 | 95

    0.47

    5,802

    1.45 | 5.5

    1.93 | 7.3

    2.3 | 8.7

    2.88 | 10.9

    3.28 | 12.4

    3.7 | 14.0

    3.99 | 15.1

    1.81

    10 | 3.0

    1/8"

    209.4 | 95

    0.51

    5,802

    1.93 | 7.3

    2.59 | 9.8

    3.09 | 11.7

    3.86 | 14.6

    4.39 | 16.6

    4.97 | 18.8

    5.34 | 20.2

    2.12

    10 | 3.0

    1/8"

    209.4 | 95

    0.55

    5,802

    1 | 3.8

    1.35 | 5.1

    1.59 | 6.0

    2.01 | 7.6

    2.25 | 8.5

    2.56 | 9.7

    2.75 | 10.4

    2.46

    10 | 3.0

    1/8"

    209.4 | 95

    0.59

    5,091

    1.43 | 5.4

    1.88 | 7.1

    2.25 | 8.5

    2.83 | 10.7

    3.2 | 12.1

    3.62 | 13.7

    3.91 | 14.8

    2.83

    10 | 3.0

    1/8"

    209.4 | 95

    0.63

    4,482

    1.93 | 7.3

    2.56 | 9.7

    3.06 | 11.6

    3.83 | 14.5

    4.36 | 16.5

    4.94 | 18.7

    5.31 | 20.1

    3.22

    10 | 3.0

    1/8"

    209.4 | 95

    0.67

    3,974

    2.51 | 9.5

    3.28 | 12.4

    4.04 | 15.3

    4.99 | 18.9

    5.71 | 21.6

    6.45 | 24.4

    6.95 | 26.3

    3.63

    10 | 3.0

    1/8"

    209.4 | 95

    0.71

    3,539

    3.22 | 12.2

    4.28 | 16.2

    5.13 | 19.4

    6.39 | 24.2

    7.29 | 27.6

    8.24 | 31.2

    8.88 | 33.6

    4.07

    10 | 3.0

    1/8"

    209.4 | 95

    0.75

    3,176

    4.02 | 15.2

    5.36 | 20.3

    6.39 | 24.2

    8.01 | 30.3

    9.09 | 34.4

    10.3 | 39.0

    11.1 | 42.0

    4.54

    10 | 3.0

    1/8"

    209.4 | 95

    0.79

    2,872

    4.25 | 16.1

    5.65 | 21.4

    7 | 26.5

    8.43 | 31.9

    9.59 | 36.3

    10.89 | 41.2

    11.7 | 44.3

    5.03

    10 | 3.0

    1/4"

    209.4 | 95

    0.83

    2,596

    4.81 | 18.2

    6.39 | 24.2

    7.64 | 28.9

    9.54 | 36.1

    10.86 | 41.1

    12.31 | 46.6

    13.24 | 50.1

    5.54

    10 | 3.0

    1/4"

    209.4 | 95

    0.87

    2,364

    5.42 | 20.5

    7.19 | 27.2

    8.59 | 32.5

    10.73 | 40.6

    12.21 | 46.2

    13.84 | 52.4

    14.87 | 56.3

    6.08

    10 | 3.0

    1/4"

    209.4 | 95

    0.91

    2,161

    6.05 | 22.9

    8.03 | 30.4

    9.62 | 36.4

    12.02 | 45.5

    13.69 | 51.8

    15.51 | 58.7

    16.67 | 63.1

    6.65

    10 | 3.0

    1/4"

    209.4 | 95

    0.98

    1,842

    7.5 | 28.4

    9.96 | 37.7

    11.92 | 45.1

    14.87 | 56.3

    16.94 | 64.1

    19.21 | 72.7

    20.63 | 78.1

    7.85

    10 | 3.0

    1/4"

    209.4 | 95

    1.14

    1,363

    11.02 | 41.7

    14.64 | 55.4

    17.52 | 66.3

    21.88 | 82.8

    24.91 | 94.3

    28.22 | 106.8

    30.33 | 114.8

    10.57

    10 | 3.0

    1/4"

    209.4 | 95

    1.26

    1,117

    11.33 | 42.9

    15.06 | 57.0

    17.99 | 68.1

    22.51 | 85.2

    25.6 | 96.9

    29.04 | 109.9

    31.2 | 118.1

    12.87

    10 | 3.0

    1/4"

    209.4 | 95

    1.5

    798

    18.26 | 69.1

    24.28 | 91.9

    29.04 | 109.9

    36.27 | 137.3

    41.29 | 156.3

    46.79 | 177.1

    50.3 | 190.4

    18.15

    10 | 3.0

    1/4"

    209.4 | 95

    1.73

    595

    25.26 | 95.6

    33.55 | 127.0

    40.13 | 151.9

    50.17 | 189.9

    57.09 | 216.1

    64.7 | 244.9

    69.54 | 263.2

    24.33

    10 | 3.0

    1/2"

    209.4 | 95

    1.85

    522

    29.06 | 110.0

    38.63 | 146.2

    46.18 | 174.8

    57.73 | 218.5

    65.71 | 248.7

    74.45 | 281.8

    80.03 | 302.9

    27.76

    10 | 3.0

    1/2"

    209.4 | 95

    1.97

    464

    33.13 | 125.4

    44.02 | 166.6

    52.66 | 199.3

    65.81 | 249.1

    74.9 | 283.5

    84.89 | 321.3

    91.23 | 345.3

    31.42

    10 | 3.0

    1/2"

    209.4 | 95

    2.13

    392

    39.1 | 148.0

    51.97 | 196.7

    62.14 | 235.2

    77.67 | 294.0

    88.37 | 334.5

    100.16 | 379.1

    107.66 | 407.5

    36.64

    10 | 3.0

    1/2"

    209.4 | 95

    2.28

    348

    45.55 | 172.4

    60.5 | 229.0

    72.36 | 273.9

    90.46 | 342.4

    102.93 | 389.6

    116.67 | 441.6

    125.39 | 474.6

    42.27

    10 | 3.0

    1/2"

    209.4 | 95

    2.36

    319

    49.06 | 185.7

    65.18 | 246.7

    77.94 | 295.0

    97.44 | 368.8

    110.86 | 419.6

    125.65 | 475.6

    135.06 | 511.2

    45.24

    10 | 3.0

    1/2"

    209.4 | 95

    2.56

    276

    57.52 | 217.7

    76.43 | 289.3

    91.41 | 346.0

    114.27 | 432.5

    130.01 | 492.1

    147.37 | 557.8

    158.39 | 599.5

    53.09

    10 | 3.0

    3/4"

    209.4 | 95

    2.76

    232

    67.29 | 254.7

    89.43 | 338.5

    106.95 | 404.8

    133.69 | 506.0

    152.13 | 575.8

    172.42 | 652.6

    185.31 | 701.4

    61.58

    10 | 3.0

    3/4"

    209.4 | 95

    2.99

    203

    80.11 | 303.2

    106.45 | 402.9

    127.29 | 481.8

    159.1 | 602.2

    181.06 | 685.3

    205.2 | 776.7

    220.55 | 834.8

    72.58

    10 | 3.0

    3/4"

    209.4 | 95

    3.07

    189

    84.65 | 320.4

    112.5 | 425.8

    134.53 | 509.2

    168.14 | 636.4

    191.33 | 724.2

    216.86 | 820.8

    233.08 | 882.2

    76.45

    10 | 3.0

    3/4"

    209.4 | 95

    3.15

    174

    89.35 | 338.2

    118.71 | 449.3

    141.98 | 537.4

    177.46 | 671.7

    201.95 | 764.4

    228.88 | 866.3

    246 | 931.1

    80.42

    10 | 3.0

    3/4"

    209.4 | 95

    Valve type: Double ball valve up to DN 10, plate valve as of DN 16

    Version PVC, PVDF max. 16 bar (slight deviation in pump capacity possible)

    Technical data for Evolution EF2a single-head pump 60 Hz

    Plunger Ø

    Max. pressure

    Max. pump capacity in gph | l/h at strokes/min

    Theor. stroke volume

    Suction lift

    Connection on suction/discharge side

    Shipping weight

    88

    117

    140

    175

    199

    inch

    psi

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    ml/stroke

    ft | m WC

    inches

    lb | kg

    0.43

    5,802

    1.24 | 4.7

    1.66 | 6.3

    1.98 | 7.5

    2.48 | 9.4

    2.83 | 10.7

    1.52

    10 | 3.0

    1/8"

    209.4 | 95

    0.47

    5,802

    1.74 | 6.6

    2.32 | 8.8

    2.77 | 10.5

    3.46 | 13.1

    3.94 | 14.9

    1.81

    10 | 3.0

    1/8"

    209.4 | 95

    0.51

    5,802

    2.32 | 8.8

    3.12 | 11.8

    3.73 | 14.1

    4.65 | 17.6

    5.28 | 20.0

    2.12

    10 | 3.0

    1/8"

    209.4 | 95

    0.55

    5,802

    1.22 | 4.6

    1.61 | 6.1

    1.96 | 7.4

    2.43 | 9.2

    2.77 | 10.5

    2.46

    10 | 3.0

    1/8"

    209.4 | 95

    0.59

    5,091

    1.72 | 6.5

    2.27 | 8.6

    2.72 | 10.3

    3.41 | 12.9

    3.86 | 14.6

    2.83

    10 | 3.0

    1/8"

    209.4 | 95

    0.63

    4,482

    2.32 | 8.8

    3.09 | 11.7

    3.7 | 14.0

    4.6 | 17.4

    5.23 | 19.8

    3.22

    10 | 3.0

    1/8"

    209.4 | 95

    0.67

    3,974

    3.01 | 11.4

    4.04 | 15.3

    4.83 | 18.3

    6.05 | 22.9

    6.87 | 26.0

    3.63

    10 | 3.0

    1/8"

    209.4 | 95

    0.71

    3,539

    3.86 | 14.6

    5.15 | 19.5

    6.18 | 23.4

    7.71 | 29.2

    8.77 | 33.2

    4.07

    10 | 3.0

    1/8"

    209.4 | 95

    0.75

    3,176

    4.81 | 18.2

    6.45 | 24.4

    7.71 | 29.2

    9.64 | 36.5

    10.96 | 41.5

    4.54

    10 | 3.0

    1/8"

    209.4 | 95

    0.79

    2,872

    5.1 | 19.3

    6.82 | 25.8

    8.14 | 30.8

    10.17 | 38.5

    11.57 | 43.8

    5.03

    10 | 3.0

    1/4"

    209.4 | 95

    0.83

    2,596

    5.76 | 21.8

    7.71 | 29.2

    9.22 | 34.9

    11.52 | 43.6

    13.1 | 49.6

    5.54

    10 | 3.0

    1/4"

    209.4 | 95

    0.87

    2,364

    6.5 | 24.6

    8.67 | 32.8

    10.36 | 39.2

    12.95 | 49.0

    14.74 | 55.8

    6.08

    10 | 3.0

    1/4"

    209.4 | 95

    0.91

    2,161

    7.27 | 27.5

    9.7 | 36.7

    11.6 | 43.9

    14.5 | 54.9

    16.51 | 62.5

    6.65

    10 | 3.0

    1/4"

    209.4 | 95

    0.98

    1,842

    9.01 | 34.1

    12.02 | 45.5

    14.37 | 54.4

    17.97 | 68.0

    20.42 | 77.3

    7.85

    10 | 3.0

    1/4"

    209.4 | 95

    1.14

    1,363

    13.21 | 50.0

    17.65 | 66.8

    21.14 | 80.0

    26.42 | 100.0

    30.04 | 113.7

    10.57

    10 | 3.0

    1/4"

    209.4 | 95

    1.26

    1,117

    13.61 | 51.5

    18.15 | 68.7

    21.72 | 82.2

    27.16 | 102.8

    30.88 | 116.9

    12.87

    10 | 3.0

    1/4"

    209.4 | 95

    1.5

    798

    21.9 | 82.9

    29.27 | 110.8

    35.03 | 132.6

    43.78 | 165.7

    49.8 | 188.5

    18.15

    10 | 3.0

    1/4"

    209.4 | 95

    1.73

    595

    30.3 | 114.7

    40.48 | 153.2

    48.43 | 183.3

    60.55 | 229.2

    68.85 | 260.6

    24.33

    10 | 3.0

    1/2"

    209.4 | 95

    1.85

    522

    34.87 | 132.0

    46.58 | 176.3

    55.75 | 211.0

    69.67 | 263.7

    79.23 | 299.9

    27.76

    10 | 3.0

    1/2"

    209.4 | 95

    1.97

    464

    39.76 | 150.5

    53.1 | 201.0

    63.54 | 240.5

    79.42 | 300.6

    90.33 | 341.9

    31.42

    10 | 3.0

    1/2"

    209.4 | 95

    2.13

    392

    46.92 | 177.6

    62.67 | 237.2

    66.34 | 251.1

    109.33 | 413.8

    106.6 | 403.5

    36.64

    10 | 3.0

    1/2"

    209.4 | 95

    2.28

    348

    54.66 | 206.9

    73 | 276.3

    87.34 | 330.6

    109.17 | 413.2

    124.15 | 469.9

    42.27

    10 | 3.0

    1/2"

    209.4 | 95

    2.36

    319

    58.86 | 222.8

    78.63 | 297.6

    94.08 | 356.1

    117.6 | 445.1

    133.71 | 506.1

    45.24

    10 | 3.0

    1/2"

    209.4 | 95

    2.56

    276

    69.01 | 261.2

    92.21 | 349.0

    110.33 | 417.6

    137.91 | 522.0

    156.83 | 593.6

    53.09

    10 | 3.0

    3/4"

    209.4 | 95

    2.76

    232

    80.74 | 305.6

    107.87 | 408.3

    129.09 | 488.6

    161.35 | 610.7

    183.46 | 694.4

    61.58

    10 | 3.0

    3/4"

    209.4 | 95

    2.99

    203

    96.12 | 363.8

    128.37 | 485.9

    153.63 | 581.5

    192.02 | 726.8

    218.36 | 826.5

    72.58

    10 | 3.0

    3/4"

    209.4 | 95

    3.07

    189

    101.58 | 384.5

    135.67 | 513.5

    162.35 | 614.5

    202.93 | 768.1

    230.78 | 873.5

    76.45

    10 | 3.0

    3/4"

    209.4 | 95

    3.15

    174

    107.21 | 405.8

    143.2 | 542.0

    171.33 | 648.5

    214.19 | 810.7

    243.57 | 921.9

    80.42

    10 | 3.0

    3/4"

    209.4 | 95

    Valve type: Double ball valve up to DN 10, plate valve as of DN 16

    Version PVC, PVDF max. 16 bar (slight deviation in pump capacity possible)

    Important note:

    Abridged presentation of our complete product range. Other types on request

    Wetted materials for Evolution EF2a

    Identity code of material

    Dosing head

    Diaphragm/diaphragm mounting screw

    Connection on suction/discharge side

    Seals

    Valve seats

    Valve balls up to DN 10

    Valve plates/valve springs as of DN 16

    S2

    Stainless steel 1.4404

    PTFE / stainless steel 1.4462

    Stainless steel 1.4404

    stainless steel 1.4404

    Stainless steel 1.4404

    Al2O3 ceramic

    Stainless steel 1.4462

    P1

    PVDF

    PTFE / Hastelloy C

    PVDF

    PTFE

    PTFE

    Glass

    Ceramic / E-CTFE

    V1

    PVC

    PTFE / Hastelloy C

    PVDF

    PTFE

    PTFE

    Glass

    Ceramic / E-CTFE

    Motor data for EVOLUTION EF2a single-head pump

    Identity code specification Power supply  Remarks
    S3-phase, IP 55230 V/400 V50 Hz1.1 kWWith PTC, speed control range 1:5
    T3-phase, IP 55230 V/400 V
    265 V/460 V
    50 Hz
    60 Hz
    1.1 kW


    L3-phase, IP 55, II 2G Ex de IIC T4 Gb230 V/400 V50 Hz1.1 kWWith PTC, speed control range 1:5
    Q3-phase, IP 55, II 2G Ex de IIC T4265 V/460 V60 Hz1.1 kWWith PTC, speed control range 1:5
    V3-phase, IP 55230 V50 Hz1.5 kWVariable speed stroke control motor with integrated frequency converter

    ORLITA Evolution EF3a

    Technical data for Evolution EF3a single head pump 50 Hz SST

    Plunger Ø

    Theor. stroke volume

    Theoretical pump capacity in l/h at strokes/min

    Max. pressure

    Efficiency

    Standard type of valve

    73 [2]

    97 [3]

    116 [4]

    145 [5]

    165 [6]

    181 [7]

    201 [8]

    inch

    ml/stroke

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    psi

    At 100 % pressure

    At 50 % pressure

    0.67

    5.67

    6.34 | 24

    8.72 | 33

    10.3 | 39

    12.95 | 49

    14.8 | 56

    16.12 | 61

    17.97 | 68

    5,758

    0.72

    0.80

    1/8"

    0.87

    9.50

    10.83 | 41

    14.53 | 55

    17.44 | 66

    21.66 | 82

    24.83 | 94

    27.21 | 103

    30.12 | 114

    3,437

    0.87

    0.93

    1/8"

    0.98

    12.27

    14 | 53

    18.76 | 71

    22.46 | 85

    28.01 | 106

    31.97 | 121

    35.14 | 133

    39.1 | 148

    2,654

    0.83

    0.85

    1/4"

    1.18

    17.67

    20.34 | 77

    26.95 | 102

    32.5 | 123

    40.42 | 153

    45.97 | 174

    50.46 | 191

    56.27 | 213

    1,842

    0.92

    0.95

    1/4"

    1.34

    22.70

    26.16 | 99

    34.87 | 132

    41.74 | 158

    52.05 | 197

    59.18 | 224

    64.99 | 246

    72.13 | 273

    1,436

    0.90

    0.94

    1/2"

    1.5

    28.35

    32.76 | 124

    43.59 | 165

    52.05 | 197

    64.99 | 246

    73.98 | 280

    81.11 | 307

    90.09 | 341

    1,146

    0.93

    0.95

    1/2"

    1.73

    38.01

    43.86 | 166

    58.39 | 221

    69.75 | 264

    87.19 | 330

    99.34 | 376

    108.85 | 412

    121 | 458

    856

    0.95

    0.97

    3/4"

    1.97

    49.09

    56.8 | 215

    75.3 | 285

    90.09 | 341

    112.81 | 427

    128.4 | 486

    140.82 | 533

    156.41 | 592

    667

    0.97

    0.98

    3/4"

    2.28

    66.05

    76.35 | 289

    101.45 | 384

    121.27 | 459

    151.65 | 574

    172.52 | 653

    189.43 | 717

    210.3 | 796

    493

    0.98

    0.99

    3/4"

    2.48

    77.93

    90.09 | 341

    119.68 | 453

    143.2 | 542

    179.13 | 678

    203.7 | 771

    223.51 | 846

    248.08 | 939

    421

    0.97

    0.98

    1"

    2.76

    96.21

    111.23 | 421

    147.69 | 559

    176.75 | 669

    221.14 | 837

    251.52 | 952

    275.82 | 1,044

    306.47 | 1,160

    334

    0.97

    0.98

    1"

    2.95

    110.45

    127.61 | 483

    169.62 | 642

    202.91 | 768

    253.63 | 960

    288.77 | 1,093

    316.78 | 1,199

    351.91 | 1,332

    290

    0.98

    0.98

    1"

    3.94

    196.35

    227.21 | 860

    301.72 | 1,142

    360.9 | 1,366

    451.25 | 1,708

    513.34 | 1,943

    563.27 | 2,132

    625.63 | 2,368

    160

    0.99

    0.98

    1 1/2"

    Version PVC, PVDF max. 16 bar

    Technical data for Evolution EF3a single head pump 60 Hz SST

    Plunger Ø

    Theor. stroke volume

    Theoretical pump capacity in l/h at strokes/min

    Max. pressure

    Efficiency

    Standard type of valve

    88 [2]

    117 [3]

    140 [4]

    175 [5]

    199 [6]

    inch

    ml/stroke

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    psi

    At 100 % pressure

    At 50 % pressure

    0.67

    5.67

    7.93 | 30

    10.3 | 39

    12.42 | 47

    15.59 | 59

    17.7 | 67

    5,758

    0.72

    0.77

    1/8"

    0.87

    9.50

    13.21 | 50

    17.44 | 66

    20.87 | 79

    26.16 | 99

    29.85 | 113

    3,437

    0.83

    0.85

    1/8"

    0.98

    12.27

    16.91 | 64

    22.72 | 86

    27.21 | 103

    33.82 | 128

    38.57 | 146

    2,654

    0.83

    0.85

    1/4"

    1.18

    17.67

    24.57 | 93

    32.76 | 124

    39.1 | 148

    48.88 | 185

    55.75 | 211

    1,842

    0.87

    0.89

    1/4"

    1.34

    22.70

    31.44 | 119

    42.01 | 159

    50.2 | 190

    62.88 | 238

    71.6 | 271

    1,436

    0.88

    0.89

    1/2"

    1.5

    28.35

    39.37 | 149

    52.58 | 199

    62.88 | 238

    78.47 | 297

    89.3 | 338

    1,146

    0.89

    0.90

    1/2"

    1.73

    38.01

    52.84 | 200

    70.28 | 266

    84.28 | 319

    105.42 | 399

    119.68 | 453

    856

    9.00

    0.91

    3/4"

    1.97

    49.09

    68.43 | 259

    90.88 | 344

    108.85 | 412

    136.06 | 515

    154.82 | 586

    667

    0.91

    0.91

    3/4"

    2.28

    66.05

    91.94 | 348

    122.32 | 463

    146.37 | 554

    183.09 | 693

    208.19 | 788

    493

    0.92

    0.92

    3/4"

    2.48

    77.93

    108.59 | 411

    144.52 | 547

    172.79 | 654

    216.12 | 818

    245.71 | 930

    421

    0.92

    0.93

    1"

    2.76

    96.21

    134.21 | 508

    178.33 | 675

    213.47 | 808

    266.84 | 1,010

    303.3 | 1,148

    334

    0.93

    0.94

    1"

    2.95

    110.45

    154.03 | 583

    204.76 | 775

    244.91 | 927

    306.21 | 1,159

    348.22 | 1,318

    290

    0.94

    0.95

    1"

    3.94

    196.35

    273.71 | 1,036

    364.07 | 1,378

    435.67 | 1,649

    544.52 | 2,061

    619.28 | 2,344

    160

    0.96

    0.96

    1 1/2"

    Note:

    Abridged presentation of our complete product range. Additional plunger diameters (14-100 mm) on request.

    Wetted materials for Evolution EF3a

    Dosing head assembly

    Dosing head

    Diaphragm retaining screw

    Diaphragm

    Stainless steel 1.4404

    Stainless steel 1.4462

    PTFE multi-layer diaphragm

    Ball valve DN 6 - DN 10

    Standard type of valve

    Connection on suction/discharge side

    Valve/head seal

    Valve balls

    Valve seats

    Valve housing

    Clamp ring

    DN 6

    Stainless steel 1.4404

    Stainless steel 1.4404

    SiN ceramic

    Stainless steel 1.4404

    Stainless steel 1.4404

    Hastelloy C-4

    DN 10

    Stainless steel 1.4404

    Stainless steel 1.4404

    Al2O3 ceramic

    Stainless steel 1.4404

    Stainless steel 1.4404

    Hastelloy C-4

    Plate valve DN 16 - DN 40

    Standard type of valve

    Connection on suction/discharge side

    Valve/head seal

    Valve plate

    Valve seats

    Valve housing

    Clamp ring

    DN 16

    Stainless steel 1.4404

    Stainless steel 1.4404

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    Hastelloy C-4

    DN 20

    Stainless steel 1.4404

    Stainless steel 1.4404

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    Hastelloy C-4

    DN 25

    Stainless steel 1.4404

    Stainless steel 1.4404

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    Hastelloy C-4

    Further material versions and details available on request.

    ORLITA Evolution EF4a

    Technical data for Evolution EF4a single head pump 50 Hz SST

    Plunger Ø

    Theor. stroke volume

    Theoretical pump capacity in l/h at strokes/min

    Max. pressure

    Efficiency

    Standard type of valve

    73 [2]

    97 [3]

    116 [4]

    145 [5]

    165 [6]

    181 [7]

    201 [8]

    inch

    ml/stroke

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    psi

    At 100 % pressure

    At 50 % pressure

    0.87

    15.21

    17.44 | 66

    23.25 | 88

    27.74 | 105

    34.87 | 132

    39.63 | 150

    43.59 | 165

    48.35 | 183

    5,802

    0.64

    0.67

    1/2"

    0.98

    19.63

    22.72 | 86

    30.12 | 114

    35.93 | 136

    44.91 | 170

    51.25 | 194

    56.27 | 213

    62.35 | 236

    5,337

    0.67

    0.74

    1/2"

    1.18

    28.27

    32.5 | 123

    43.33 | 164

    51.78 | 196

    64.99 | 246

    73.71 | 279

    81.11 | 307

    90.09 | 341

    3,699

    0.70

    0.76

    1/2"

    1.34

    36.32

    42.01 | 159

    55.75 | 211

    66.58 | 252

    83.49 | 316

    94.85 | 359

    104.09 | 394

    115.72 | 438

    2,886

    0.81

    0.84

    1/2"

    1.5

    45.36

    52.31 | 198

    69.75 | 264

    83.22 | 315

    104.09 | 394

    118.63 | 449

    129.99 | 492

    144.52 | 547

    2,306

    0.82

    0.84

    3/4"

    1.73

    60.82

    70.28 | 266

    93.53 | 354

    111.76 | 423

    139.76 | 529

    159.05 | 602

    174.37 | 660

    193.66 | 733

    1,726

    0.87

    0.88

    3/4"

    1.97

    78.54

    90.88 | 344

    120.74 | 457

    144.25 | 546

    180.45 | 683

    205.28 | 777

    225.1 | 852

    250.2 | 947

    1,334

    0.90

    0.92

    1"

    2.36

    113.10

    130.78 | 495

    173.84 | 658

    207.93 | 787

    259.71 | 983

    295.64 | 1,119

    324.44 | 1,228

    360.37 | 1,364

    928

    0.91

    0.93

    1 1/4"

    2.76

    153.94

    178.07 | 674

    236.46 | 895

    282.96 | 1,071

    353.76 | 1,339

    402.64 | 1,524

    441.48 | 1,671

    490.36 | 1,856

    682

    0.91

    0.93

    1 1/2"

    2.95

    176.71

    204.49 | 774

    271.6 | 1,028

    324.7 | 1,229

    406.08 | 1,537

    462.09 | 1,749

    507 | 1,919

    563.01 | 2,131

    595

    0.91

    0.93

    1 1/2"

    3.39

    232.35

    268.69 | 1,017

    357.2 | 1,352

    427.21 | 1,617

    533.95 | 2,021

    607.66 | 2,300

    666.58 | 2,523

    740.29 | 2,802

    450

    0.93

    0.94

    2"

    3.54

    254.47

    294.32 | 1,114

    391.28 | 1,481

    467.9 | 1,771

    584.67 | 2,213

    665.52 | 2,519

    729.98 | 2,763

    810.57 | 3,068

    406

    0.93

    0.94

    2"

    3.94

    314.16

    363.54 | 1,376

    482.96 | 1,828

    577.54 | 2,186

    722.06 | 2,733

    821.66 | 3,110

    901.19 | 3,411

    1000.79 | 3,788

    334

    0.94

    0.94

    2"

    4.33

    380.13

    439.89 | 1,665

    584.41 | 2,212

    698.81 | 2,645

    873.71 | 3,307

    994.18 | 3,763

    1090.62 | 4,128

    1211.09 | 4,584

    276

    0.95

    0.95

    2"

    4.53

    415.48

    480.58 | 1,819

    638.84 | 2,418

    763.8 | 2,891

    954.82 | 3,614

    1086.65 | 4,113

    1192.07 | 4,512

    1323.64 | 5,010

    247

    0.93

    0.95

    2 1/2"

    5.12

    530.93

    614.27 | 2,325

    816.38 | 3,090

    976.22 | 3,695

    1220.34 | 4,619

    1388.64 | 5,256

    1523.11 | 5,765

    1691.67 | 6,403

    203

    0.94

    0.95

    2 1/2"

    5.51

    615.75

    712.55 | 2,697

    946.63 | 3,583

    1132.1 | 4,285

    1415.32 | 5,357

    1610.3 | 6,095

    1766.71 | 6,687

    1961.95 | 7,426

    174

    0.95

    0.96

    2 1/2"

    Version PVC, PVDF max. 16 bar

    Technical data for Evolution EF4a single head pump 60 Hz SST

    Plunger Ø

    Theor. stroke volume

    Theoretical pump capacity in l/h at strokes/min

    Max. pressure

    Efficiency

    Standard type of valve

    88 [2]

    117 [3]

    140 [4]

    175 [5]

    199 [6]

    inch

    ml/stroke

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    gph | l/h

    psi

    At 100 % pressure

    At 50 % pressure

    0.87

    15.21

    21.14 | 80

    28.01 | 106

    33.55 | 127

    42.01 | 159

    47.82 | 181

    5,802

    0.67

    0.81

    1/2"

    0.98

    19.63

    27.21 | 103

    36.2 | 137

    43.33 | 164

    54.43 | 206

    61.82 | 234

    5,337

    0.74

    0.85

    1/2"

    1.18

    28.27

    39.37 | 149

    52.31 | 198

    62.62 | 237

    71.07 | 269

    89.04 | 337

    3,699

    0.76

    0.85

    1/2"

    1.34

    36.32

    50.46 | 191

    67.11 | 254

    80.58 | 305

    100.66 | 381

    114.4 | 433

    2,886

    0.84

    0.87

    1/2"

    1.5

    45.36

    63.14 | 239

    84.02 | 318

    100.66 | 381

    125.76 | 476

    142.93 | 541

    2,306

    0.84

    0.90

    3/4"

    1.73

    60.82

    84.81 | 321

    112.81 | 427

    134.74 | 510

    168.56 | 638

    191.81 | 726

    1,726

    0.88

    0.87

    3/4"

    1.97

    78.54

    109.38 | 414

    145.57 | 551

    174.11 | 659

    217.7 | 824

    247.56 | 937

    1,334

    0.92

    0.90

    1"

    2.36

    113.10

    157.73 | 597

    209.51 | 793

    250.99 | 950

    313.61 | 1,187

    356.67 | 1,350

    928

    0.93

    0.91

    1 1/4"

    2.76

    153.94

    214.53 | 812

    285.34 | 1,080

    341.61 | 1,293

    426.95 | 1,616

    485.6 | 1,838

    682

    0.93

    0.91

    1 1/2"

    2.95

    176.71

    246.5 | 933

    327.61 | 1,240

    392.07 | 1,484

    490.09 | 1,855

    557.46 | 2,110

    595

    0.93

    0.91

    1 1/2"

    3.39

    232.35

    323.91 | 1,226

    430.91 | 1,631

    515.45 | 1,951

    644.38 | 2,439

    732.89 | 2,774

    450

    0.94

    0.93

    2"

    3.54

    254.47

    354.82 | 1,343

    471.86 | 1,786

    564.6 | 2,137

    705.68 | 2,671

    802.64 | 3,038

    406

    0.94

    0.93

    2"

    3.94

    314.16

    438.04 | 1,658

    582.56 | 2,205

    696.96 | 2,638

    871.33 | 3,298

    991.01 | 3,751

    334

    0.94

    0.94

    2"

    4.33

    380.13

    530.25 | 2,007

    704.89 | 2,668

    843.59 | 3,193

    1054.42 | 3,991

    1198.94 | 4,538

    276

    0.95

    0.95

    2"

    4.53

    415.48

    579.39 | 2,193

    770.41 | 2,916

    922.06 | 3,490

    1152.44 | 4,362

    1310.43 | 4,960

    247

    0.95

    0.93

    2 1/2"

    5.12

    530.93

    740.55 | 2,803

    984.67 | 3,727

    1178.07 | 4,459

    1472.65 | 5,574

    1674.76 | 6,339

    203

    0.95

    0.94

    2 1/2"

    5.51

    615.75

    858.91 | 3,251

    1141.87 | 4,322

    1366.44 | 5,172

    1708.05 | 6,465

    1942.4 | 7,352

    174

    0.96

    0.96

    2 1/2"

    Wetted materials for Evolution EF4a

    Dosing head assembly

    Dosing head

    Diaphragm retaining screw

    Diaphragm

    Stainless steel 1.4404

    Stainless steel 1.4462

    PTFE multi-layer diaphragm

    Plate valve

    Standard type of valve

    Connection on suction/discharge side

    Valve/head seal

    Valve plate

    Valve seats

    Valve housing

    DN 16

    Stainless steel 1.4404

    Stainless steel 1.4571

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    DN 20

    Stainless steel 1.4404

    Stainless steel 1.4571

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    DN 25

    Stainless steel 1.4404

    Stainless steel 1.4571

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    DN 32

    Stainless steel 1.4404

    Stainless steel 1.4571

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    DN 40

    Stainless steel 1.4404

    Stainless steel 1.4571

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    DN 50

    Stainless steel 1.4404

    Stainless steel 1.4571

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    DN 65

    Stainless steel 1.4404

    Stainless steel 1.4571

    Stainless steel 1.4462

    Stainless steel 1.4404

    Stainless steel 1.4404

    Note:

    Abridged presentation of our complete product range. Other piston diameters (22–140 mm) on request.

    Downloads for Evolution Series

    More in the Download Centre

    0 Results
    Filter by document type
    Application Example / Reference (0)
    Brochure / Flyer (0)
    Catalogue (0)
    Certificate / Declaration (0)
    Data Sheet (0)
    Drawing / Dimensional Drawing / 3D (0)
    Exploded View / Spare Parts (0)
    Material Safety Data Sheet (0)
    Operating Instructions (0)
    Others (0)
    Press Release (0)
    Publication / Article (0)
    Software (0)
    Wiring Diagram (0)

    Selected filters:

    Matching downloads

    Sort by Document type
    Load more matches ...
    No more matches available!

    Unfortunately, we did not find an appropriate match.

    All words written correctly?
    Search again with fewer or different search terms?

    Please try again later

    Service Unavailable

    The server is temporarily unable to service your request due to maintenance downtime or capacity problems. Please try again later.

    Overview

    Maximum process reliability and flexibility.

    The ProMinent Evolution Series pumps are API 675, 3rd Edition compliant and meet the most exacting safety requirements as an extremely robust hydraulic diaphragm metering pump design.

    Features and Benefits

    • Flow rates from 0.48 to 1932.48 gph per head
    • Operating Pressures up to 5802 psig
    • Variable eccentric drive for accurate, robust operation and a smaller footprint
    • Four frame sizes to cover a broad range of applications
    • PTFE multi-layer diaphragm with integral diaphragm rupture warning system is standard on all pumps
    • Liquid End Materials in 316ss and Alloy 20, additional materials available on demand
    • Exclusive Diaphragm Position Control protects the pump against operating faults (e.g., no damage in the event of a blockage on either the suction or discharge side). This advance in pump design technology means a more reliable metering pump in every application
    • Metering reproducibility is better than ±1 % within the 10 - 100 % stroke length range under defined conditions and with correct installation
    • Continuous air bleeding of the hydraulic oil chamber ensures reliable operation
    • Integral adjustable internal hydraulic pressure relief valve with features that allow for oil cooling during extended periods of process upset conditions
    • Excellent flexibility
    • The Evolution's modular compact construction allows for a wide range of applications
    • Up to five (5) metering units of identical or varying pump capacities can be multiplexed for the greatest application adaptability
    • A rotatable drive housing allows for installation of motor in a vertical or horizontal position to better meet specific footprint requirements
    • Custom designs are possible to meet a variety of application demands

    Video

    Application

    Technical Data

    Downloads

    Find local ProMinent representative

    Contact us

    »We are looking forward to your enquiry.«

    +1 412-787-2484
